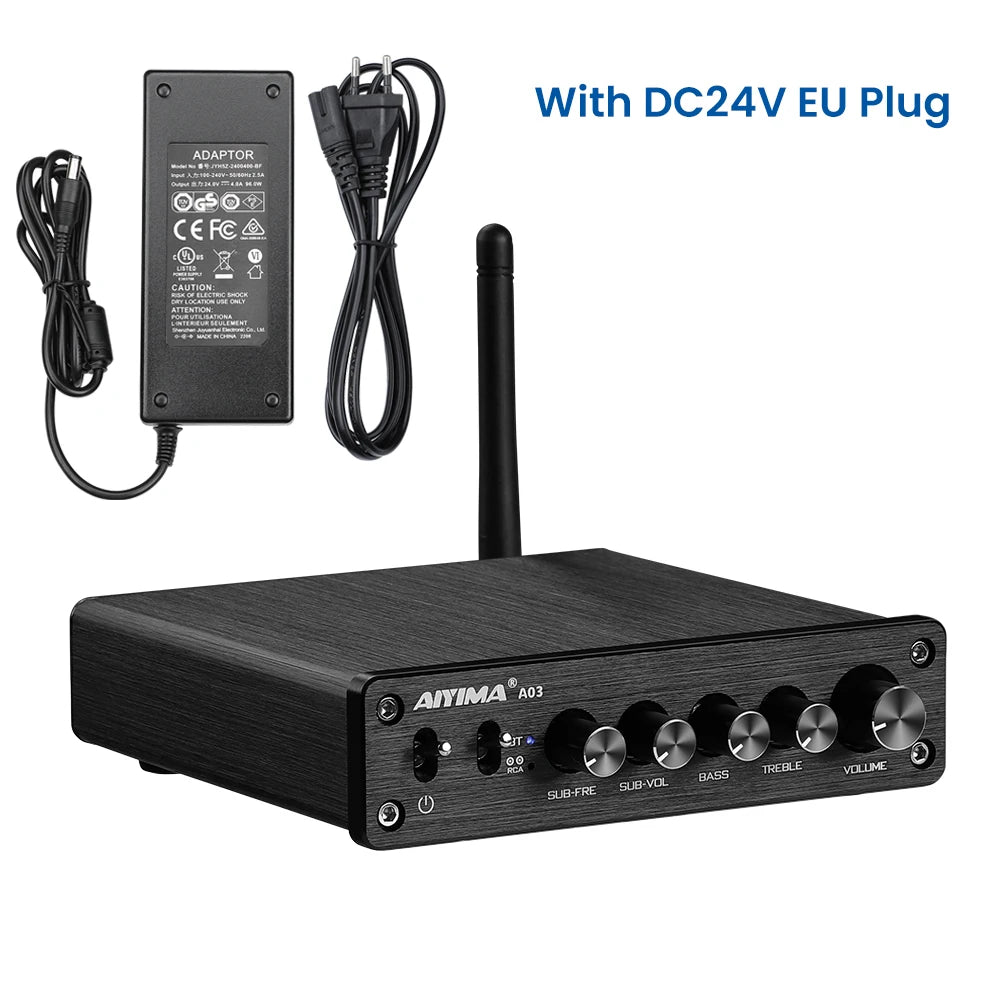

AIYIMA A03 TPA3116 Subwoofer Bluetooth Amplifier HiFi TPA3116D2 2.1 Digital Audio Power Amplifiers 50Wx2+100W Sound Amplifier

$106.47

Shipping calculated at checkout.

SPECIFICATIONS

AIYIMA Model: A03

Bluetooth version: 5.0

Brand Name: Aiyima

Certification: CE, FCC, RoHS, KC

Channels: 3 (2.1)

Feature: Subwoofer amplifier

Feature 1: Bluetooth amplifier

High-concerned chemical: None

Maximum Power Per Channel: 100 W

Model Number: A03

Origin: Mainland China

Package: Yes

output power: 50Wx2+100W

Features:

1. Support dual input: one AUX input, to connect wired analog signals; the other is Bluetooth 5.2 wireless input, for connecting to mobile phones, computers, and other Bluetooth devices.

2. Supports subwoofer frequency adjustment, allowing you to tailor the bass frequency to your needs.

3. Supports bass frequency adjustment for the left and right satellite speakers, making the output more versatile; additionally, the left and right speakers can be used independently even when the subwoofer is not connected.

4. The Bluetooth section utilizes an imported QCC304X high-quality Bluetooth receiver, and the internal circuitry uses 4 NE5532 op-amps, 3 of which are pluggable/replaceable, allowing users to experiment with different op-amp styles for improved sound.

5. Materials: Plug-in capacitors are all original imported components with large capacity.

6. No power-on/off noise.

7. Large heat sink for stable, long-term high-power operation.

8. Power supply voltage: DC 12V-24V, current 3A or more, DC jack size 5.5*2.5mm, negative outer/positive inner (DC 24V 8A recommended)

9. Output impedance: 4-8 Ohm

10. Output power: 50W+50W (left and right channels at 4 Ohm load), 100W (subwoofer). 2.1 channel.

11. Frequency response: 20-20KHz

12. Distortion: 0.1%

13. Signal-to-noise ratio: > 82dB

14. Sensitivity: 82dB

15. Left and right channel bass adjustment range: +12dB to -14dB

16. Left and right channel treble adjustment range: ±10dB

17. Subwoofer cut-off frequency: 40-240Hz

18. Knob functions (right to left): Total volume, left/right channel treble, left/right channel bass, subwoofer volume, subwoofer frequency.

Chipset: TPA3116*2 + QCC304X + NE5532P*3 + TL072

Bluetooth chip: QCC304X

Bluetooth 5.2 support: AAC, SBC, aptX, aptX-LL, APTX-HD

Op-amp chip: NE5532*3

Replaceable op-amp chips: OPA2604, OPA2134, LM4562, JRC5532, etc.

Product dimensions: 130*122*33mm

Package dimensions: 280*180*60mm

Product net weight: 570g

Gross weight (including package): 735g

About signal cables

Signal cables are used for transmitting weak signals, which are susceptible to interference. It is recommended to use high-quality shielded signal cables.

Even with good quality cables, using a mobile phone as a signal source may still cause interference.

About the signal source

Common signal sources include mobile phones and computers. The audio output quality varies by device. Generally, if the audio quality from a computer motherboard is poor, it might not be noticeable at low volumes but becomes obvious after amplification.

If you are unsatisfied with the sound quality from your computer, you can purchase a USB decoder (external USB sound card) to improve the signal source and significantly reduce noise. To identify the noise source, disconnect the input cable, increase the amplifier volume, and listen to the speakers. If there is no noise, the noise originates from the source or the signal cable.

Precautions for use:

1. Do not use cheap, unshielded audio cables, as these can introduce high-frequency noise that increases as the volume knob is turned up. Use quality cables to ensure quiet, hum-free performance.

2. The correct connection sequence is: first connect the power supply to the amplifier, and then connect the power supply to the mains. The incorrect sequence (connecting to mains first) can cause a small low-voltage spark at the plug due to the filter capacitors, which, while not damaging, is not a recommended practice.

3. Use a power supply with high current capacity. If only 2-3A is used, the output performance will be limited.

Tip:

To achieve sufficient output power, both the audio input signal and the power supply (voltage/current) must be sufficient. Higher supply voltage yields higher relative power. Speaker impedance also affects output power; generally, higher impedance results in lower relative power. Please be aware of this!

Package contents:

1 x 2.1 Bluetooth 5.2 Digital Amplifier (optional)

1 x DC 24V 4A Power Supply (optional)

Warranty: 24 Months
