ANENG M469D network line finder RJ45RJ11 dual interface telephone line and network cable on/off detection split type line tester

ANENG M469D network line finder RJ45RJ11 dual interface telephone line and network cable on/off detection split type line tester

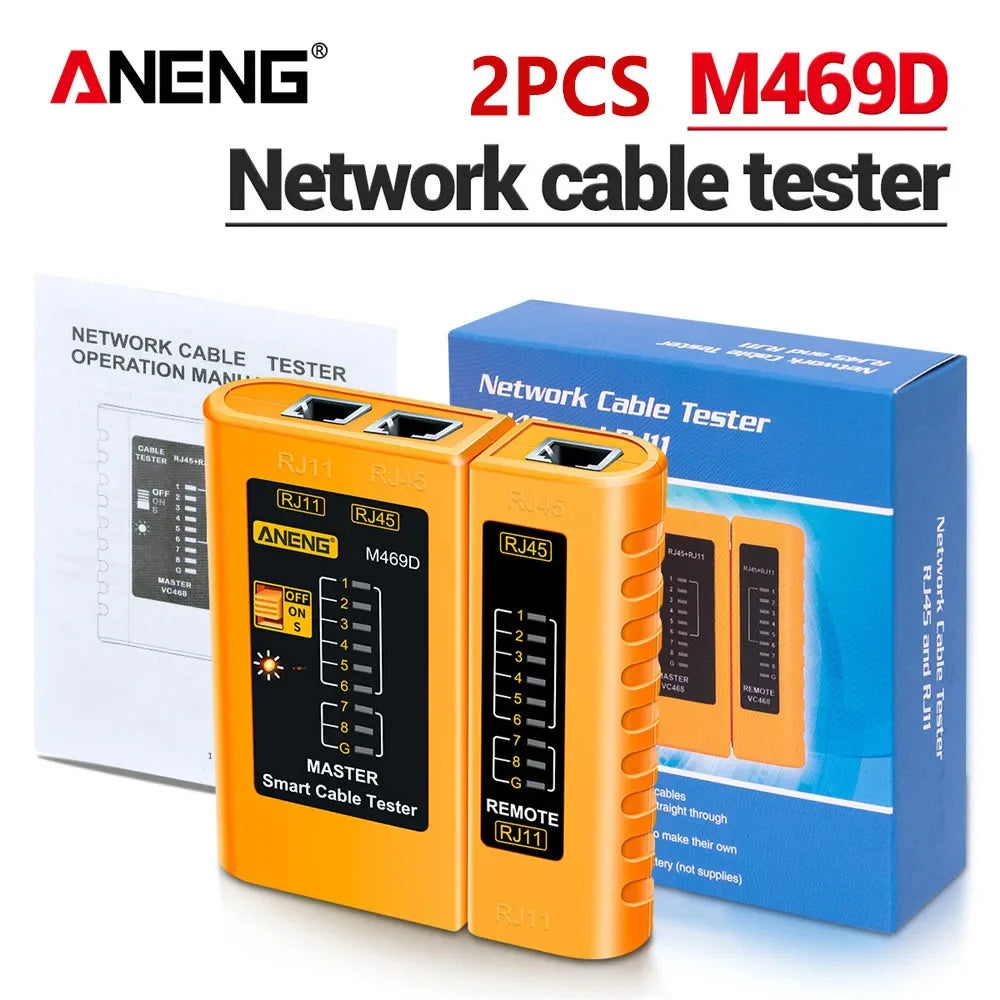

ANENG M469D is a professional network cable connection detector designed specifically for detecting, locating, and troubleshooting communication cables such as Ethernet and telephone lines.

Adopting a split structure and dual interface adaptation, it integrates multiple functions such as on/off detection, line tracing, and shielding line testing.

It is an essential tool for network cabling, weak current engineering, computer room maintenance, home decoration cabling, and other scenarios, balancing professional accuracy and portability.

Test of double-twisted cables:

Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently form 1 to G.


Main tester:

1-2-3-4-5-6-7-8-G


Remote tester:

1-2-3-4-5-6-7-8-G RJ45
1-2-3-4-5-6 RJ11

Following are abnormal connections:

If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn on.

If several cables are not connected, several lights will not turn on respectively. If less than two cables are conntected, none of the lights is on.

If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:

Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G

If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged.

If three cables, including three, are short circuited, none of the corresponding liaghts is on.

If test patch panels or wall plate outlels, two cables which can match each other (RJ45) will be connected to the tester.

If test cables of the same axes, BNC turns on when the cable works.

9V reduplicated battery is used in this tester. Battery is advised to change if any weak light oppears.( Battery is not included )

Core strengths:

✅ Dual interface adaptation:
      RJ45 Ethernet cable+RJ11 telephone cable, covering all scene cables

✅ Multi functional detection:
      Troubleshooting for on/off/short circuit/misconnection, wire tracing and matching, shielding wire testing

✅ Split design:
      Single person can complete long-distance detection, flexible and convenient

✅ Dual gear switching:
      Constant speed/fast mode, suitable for different detection needs

✅ Safe and durable:
      Made of flame-retardant ABS material, lightweight and portable, powered by 9V battery

Packing List:

M469D Network Cable Tester Host x 1 (without battery)

User manual x 1

Single color box * 1
