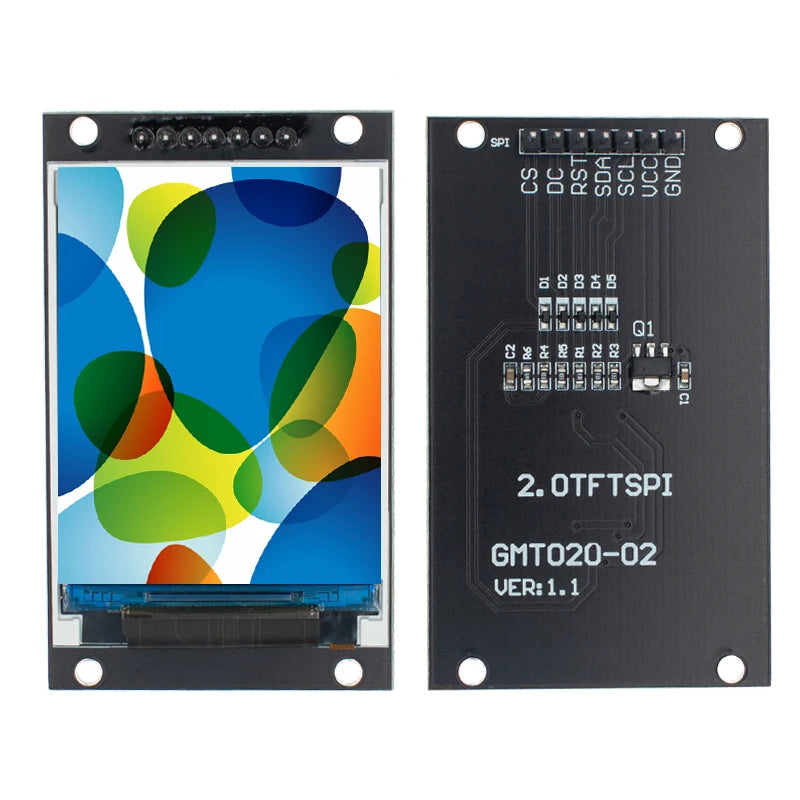

TFT Display 0.96/1.3/1.44/1.77/1.8/2.4/2.8 inch IPS 7P SPI HD 65K TFT Full Color LCD Module ST7735 Drive IC 80*160 For Arduino

$7.49 USD

$7.49 USD ~~$0.00 USD~~

배송료는 결제 시 계산됩니다.

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Model Number: 0.96/1.3/1.44/1.77/1.8/2.4 inch

Origin: Mainland China

Type: TFT

is_customized: Yes

0.96 inch Module

Features:

SIZE: 0.96inch

Display Mode: Normally black IPS

Display Format: Graphic 80RGB*160 Dot-matrix

Input Data: SPI interface

Drive IC ST7735S

Dimensional outline: 24(W)*30 (H)*2.8+/-0.1(T)mm

Resolution: 80RGB*160 Dots

LCD Active area: 10.8 (W)*21.7 (H)

Dot pitch: 0.135(H) x 0.1356(V) mm

Viewing Direction: All View

Operating Temperature: -20～70°C

Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 CS Chip Select

8 BLK Backlight control pin

1.3 inch Module

Features:

Display Mode: Normally black IPS

Display Format: Graphic 240RGB*240 Dot-matrix

Input Data: SPI interface

Drive IC ST7789VW

Dimensional outline: 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm

Resolution: 240RGB*240 Dots

LCD Active area: 23.4 (W)*23.4 (H)

Dot pitch: 0.0975(H) x 0.0975(V) mm

Viewing Direction: All View

Operating Temperature: -20～70°C

Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 BLK Backlight control pin

1.77 inchTFT LCD module:

1.8 inch TFT LCD module:

1.8-inch SPI serial port 128*160 Instructions

Program default IO connection method:

sbit LCD_CS =P0^0; //chip select

sbit LCD_AO =P0^2; //data/command switch

sbit LCD_SDA =P1^5; // Data

sbit LCD_SCK =P1^7; //clock

sbit LCD_REST =P0^1; //reset

● TFT power supply: screen power supply is 2.8-3.3V; remember not to use 5V

(modules with PCB have inherited 3V regulator IC , 5V can be input)

● Backlight power supply (LED pin): The maximum backlight power supply is 3.2V.

(5 ohm current limiting resistor can be connected in series under 3.3V power supply or 25 ohm resistor in series under 5V).

Product Description

2.4-inch color screen,support 65K color display,display rich colors
320X240 resolution, optional touch function
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support

Product Parameters

Name	Parameter
Display Color	RGB 65K color
SKU	have touch screen: MSP2402
SKU	have no touch screen: MSP2401
Screen Size	2.4(inch)
Type	TFT
Driver IC	ST7789V
Resolution	320*240 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	36.72x48.96(mm)
Module PCB Size	77.18x42.72(mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
VCC power voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	TBD
Rough Weight(Package containing)	No touch: 26(g) / With touch: 36(g)
